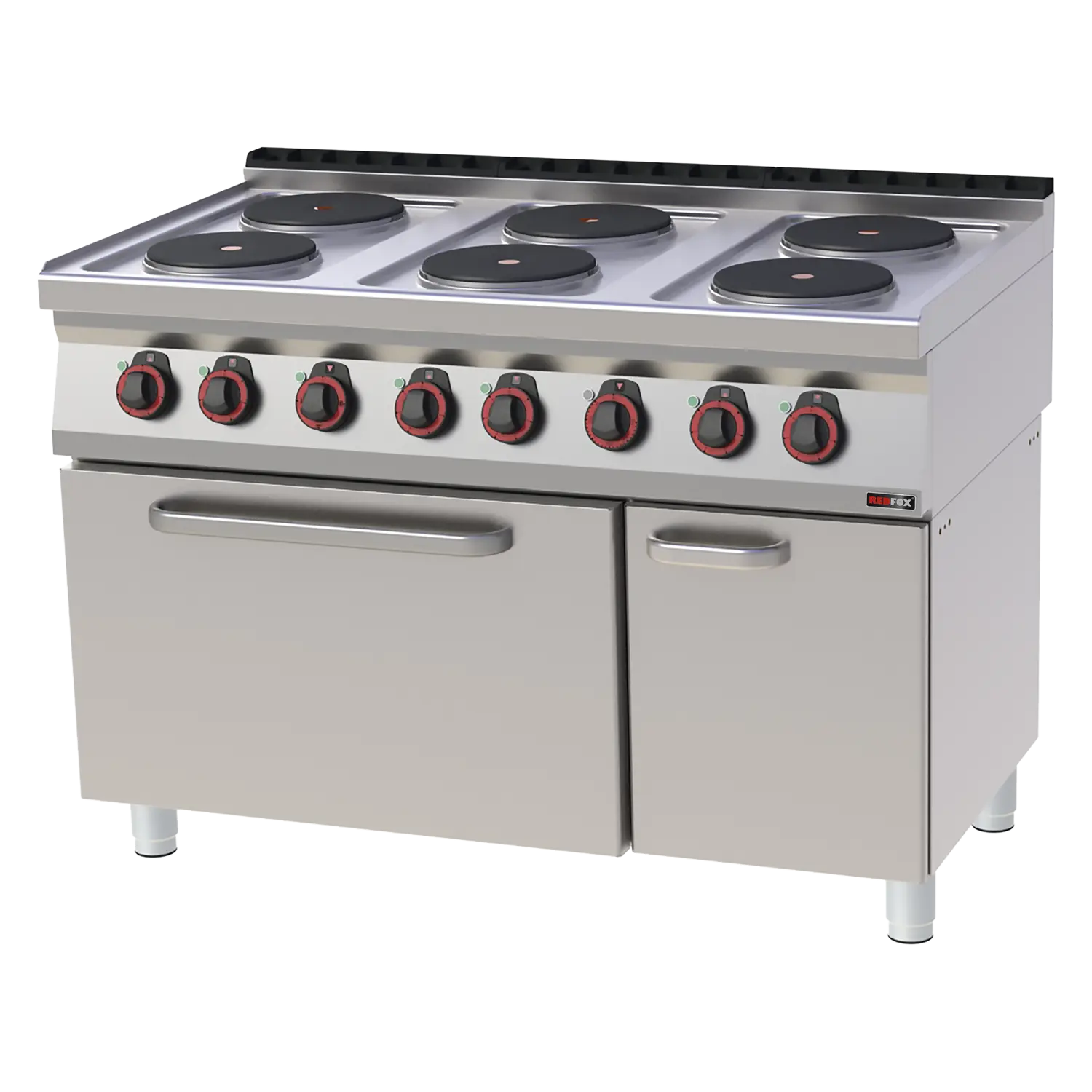

Cooking range electric with static electric oven GN 2/1 - 6x plate 400 V | REDFOX - SPT 70/120-21 E
- Device type: Electric unit
- Power consumption of the zone 1 [kW]: 2,6
- Power consumption of the zone 2 [kW]: 2,6
- Power consumption of the zone 3 [kW]: 2,6
- Power consumption of the zone 4 [kW]: 2,6
- Power consumption of the zone 5 [kW]: 2,6
- Power consumption of the zone 6 [kW]: 2,6
- Type of internal part of the appliance 1 (eg oven): Electric
- Type of internal part of the appliance 2 (eg oven): Static
- Protection of controls: IPX4
- Material: AISI 304 top plate, AISI 430 cladding
Key properties
Technical details
| SAP Code | 00110114 |
| Net Width [mm] | 1200 |
| Net Depth [mm] | 700 |
| Net Height [mm] | 900 |
| Net Weight [kg] | 119.60 |
| Gross Width [mm] | 1240 |
| Gross depth [mm] | 800 |
| Gross Height [mm] | 975 |
| Gross Weight [kg] | 136.35 |
| Device type | Electric unit |
| Construction type of device | With substructure |
| Power electric [kW] | 21.900 |
| Loading | 400 V / 3N - 50 Hz |
| Protection of controls | IPX4 |
| Material | AISI 304 top plate, AISI 430 cladding |
| Worktop type | Molded - comfortable cleaning maintenance |
| Worktop material | AISI 304 |
| Worktop Thickness [mm] | 1.20 |
| Number of zones | 6 |
| Power consumption of the zone 1 [kW] | 2,6 |
| Power consumption of the zone 2 [kW] | 2,6 |
| Power consumption of the zone 3 [kW] | 2,6 |
| Power consumption of the zone 4 [kW] | 2,6 |
| Power consumption of the zone 5 [kW] | 2,6 |
| Power consumption of the zone 6 [kW] | 2,6 |
| Number of power control stages | 6 |
| Service accessibility | Trough the frontal panel |
| Safety element | oven safety thermostat |
| Safety thermostat up to x ° C | 360 |
| Adjustable feet | Yes |
| Number of burners/hot plates | 6 |
| Diameter of device [mm] | 220 |
| Type of electric cooking zones | Oval |
| Oven Type | electrical static |
| Oven size | GN 2/1 |
| Oven material | Stainless steel |
| Type of internal part of the appliance 1 (eg oven) | Electric |
| Type of internal part of the appliance 2 (eg oven) | Static |
| Width of internal part [mm] | 682 |
| Depth of internal part [mm] | 558 |
| Height of internal part [mm] | 348 |
| Maximum temperature of the inner chamber [°C] | 50 |
| Minimum temperature of the inner chamber [°C] | 300 |
| Cross-section of conductors CU [mm²] | 10 |
