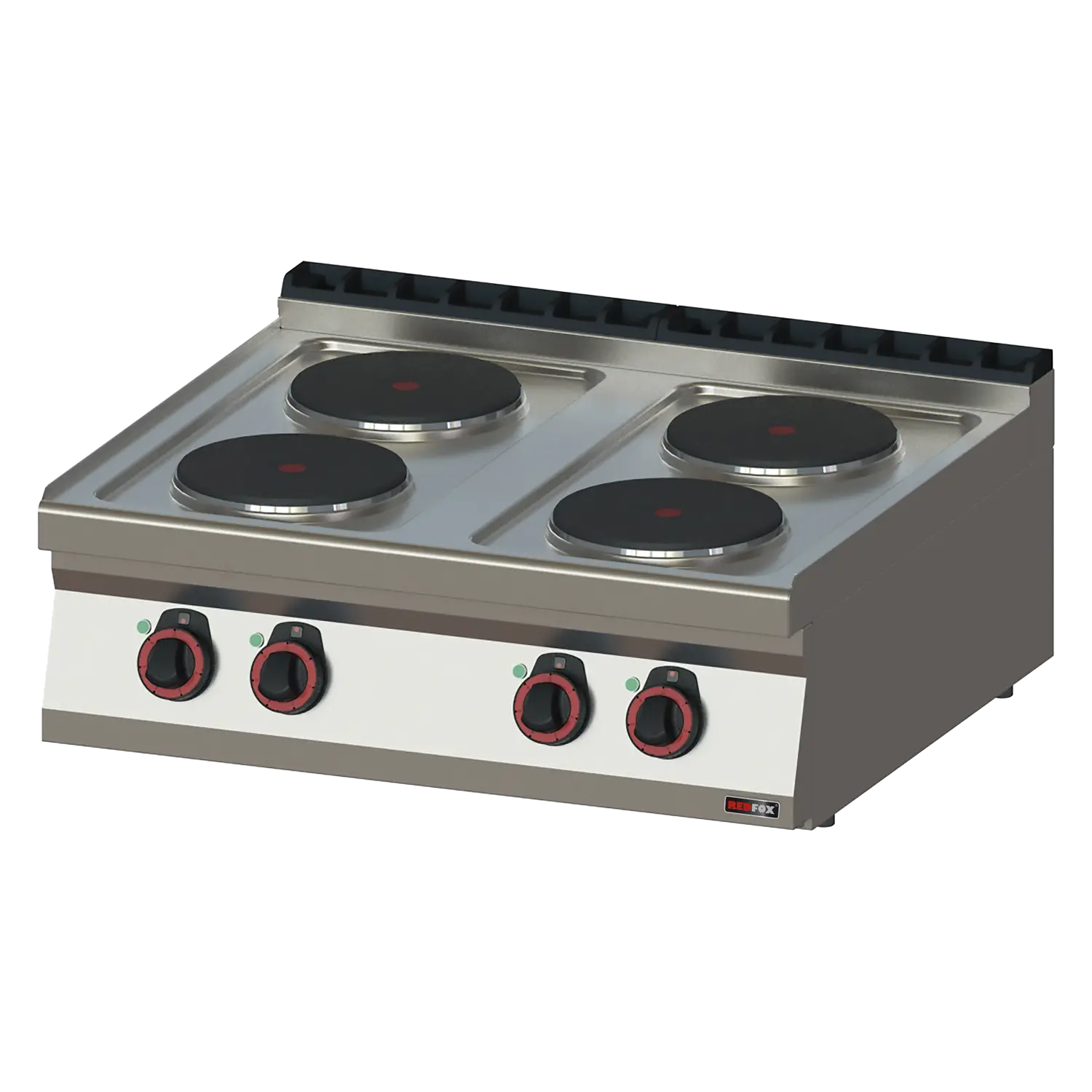

Cooking range electric 4x plate without cabinet 400 V | REDFOX - SP 70/08 E
Product no - 00110094 / Model: SP 70/08 E
Available at the central warehouse
- Device type: Electric unit
- Power consumption of the zone 1 [kW]: 4x hotplates 2.6 kW ø 220 mm
- Power consumption of the zone 2 [kW]: 2,6
- Power consumption of the zone 3 [kW]: 2,6
- Power consumption of the zone 4 [kW]: 2,6
- Material: AISI 304 top plate, AISI 430 cladding
Key properties
Catalog price without VAT
1,330.00 EUR
Technical details
| SAP Code | 00110094 |
| Net Width [mm] | 800 |
| Net Depth [mm] | 700 |
| Net Height [mm] | 330 |
| Net Weight [kg] | 39.00 |
| Gross Width [mm] | 840 |
| Gross depth [mm] | 800 |
| Gross Height [mm] | 390 |
| Gross Weight [kg] | 50.00 |
| Device type | Electric unit |
| Construction type of device | Table top |
| Power electric [kW] | 10.400 |
| Loading | 400 V / 3N - 50 Hz |
| Material | AISI 304 top plate, AISI 430 cladding |
| Worktop type | Molded - comfortable cleaning maintenance |
| Worktop material | AISI 304 |
| Worktop Thickness [mm] | 1.20 |
| Number of zones | 4 |
| Power consumption of the zone 1 [kW] | 4x hotplates 2.6 kW ø 220 mm |
| Power consumption of the zone 2 [kW] | 2,6 |
| Power consumption of the zone 3 [kW] | 2,6 |
| Power consumption of the zone 4 [kW] | 2,6 |
| Number of power control stages | 6 |
| Service accessibility | Trough the frontal panel |
| Safety element | internal thermostatic protection of the hotplate against overheating |
| Adjustable feet | Yes |
| Number of burners/hot plates | 4 |
| Type of electric cooking zones | Oval |
| Cross-section of conductors CU [mm²] | 2,5 |
