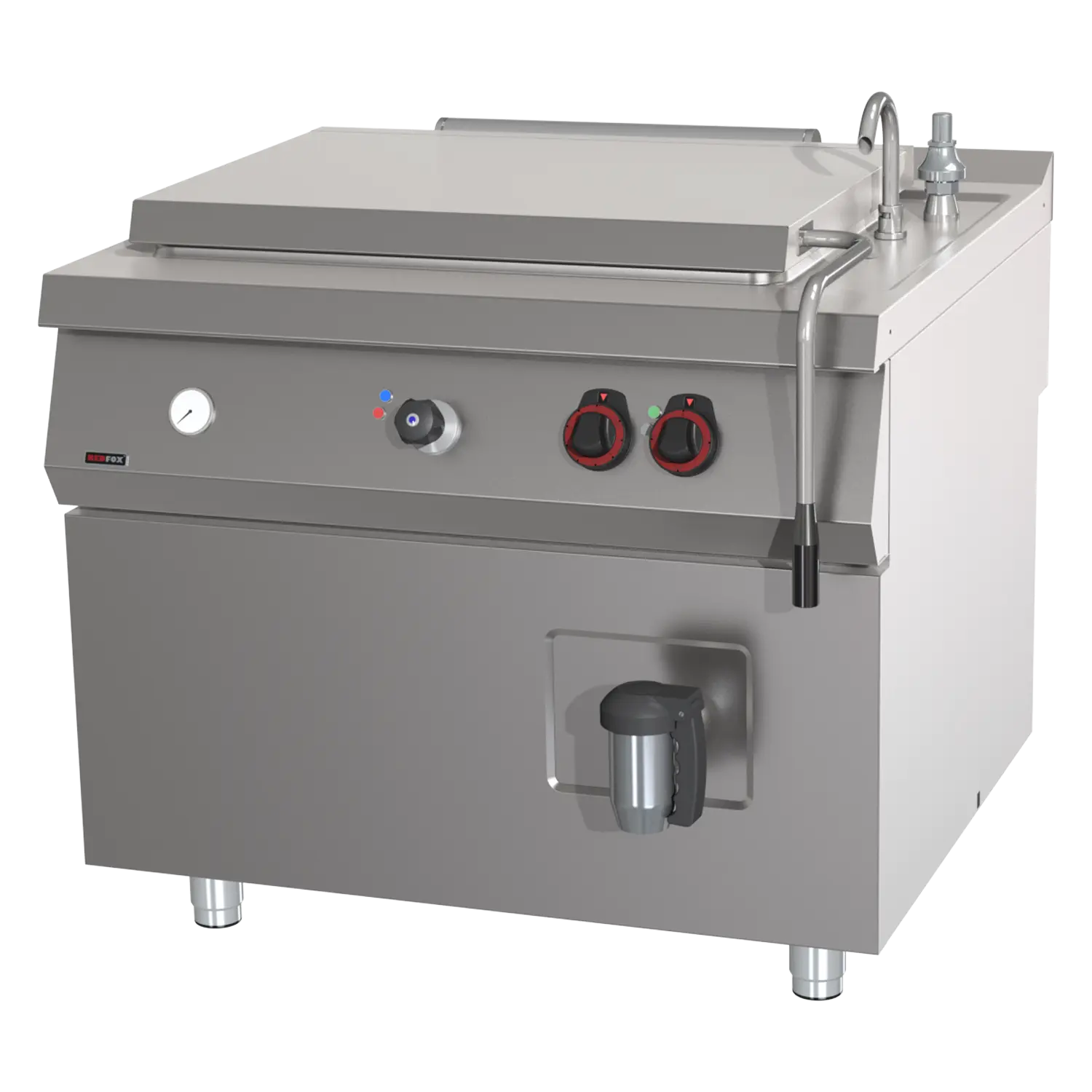

High-capacity boiling kettle electric indirect 200 l with automatic water charge | REDFOX - BIQ 90/100 200 E AWF
- Device type: Electric unit
- Device heating type: Indirect
- Steam pressure regulation: Automatic - the pressure switch regulates the performance of the device
- Filling : Mechanical cock
- Jacket filling: Automatic
- Drain valve diameter: 2"
- Basin dimensions [mm x mm x mm]: 760x540x440/490
- Basin volume [l]: 200
- Usable volume [l]: 183
Technical details
| SAP Code | 00019452 |
| Net Width [mm] | 1000 |
| Net Depth [mm] | 928 |
| Net Height [mm] | 900 |
| Net Weight [kg] | 190.00 |
| Gross Width [mm] | 1035 |
| Gross depth [mm] | 1030 |
| Gross Height [mm] | 1085 |
| Gross Weight [kg] | 198.00 |
| Device type | Electric unit |
| Construction type of device | Stationary |
| Power electric [kW] | 24.000 |
| Loading | 400 V / 3N - 50 Hz |
| Protection of controls | IPX4 |
| Exterior color of the device | Stainless steel |
| Material | AISI 304 top plate and cladding |
| Indicators | operation and warm-up |
| Drain valve diameter | 2" |
| Worktop type | Molded - comfortable cleaning maintenance |
| Worktop material | AISI 304 |
| Worktop Thickness [mm] | 2.00 |
| Surface finish | polished stainless steel |
| Device heating type | Indirect |
| Basin volume [l] | 200 |
| Basin dimensions [mm x mm x mm] | 760x540x440/490 |
| Volume capacity of the container [l] | 200.00 |
| Maximum device temperature [°C] | 100 |
| Minimum device temperature [°C] | 30 |
| Service accessibility | Trough the frontal panel |
| Safety element | manometer long handle |
| Safety thermocouple | Yes |
| Safety thermostat | Yes |
| Safety thermostat up to x ° C | 150 |
| Adjustable feet | Yes |
| Bottom thickness | 2.50 |
| Bottom material | AISI 316 |
| Type of pan | Fixed |
| Usable volume [l] | 183 |
| Filling | Mechanical cock |
| Jacket filling | Automatic |
| Basin shape | Practically shaped bathtub spout to minimize spillage |
| Steam pressure regulation | Automatic - the pressure switch regulates the performance of the device |
| Type of drain valve | conical |
| Overflow | Yes |
| Manometer | Yes |
| Water filling type | Cold |
| Cross-section of conductors CU [mm²] | 10 |
| Water supply connection | 1/2" |
