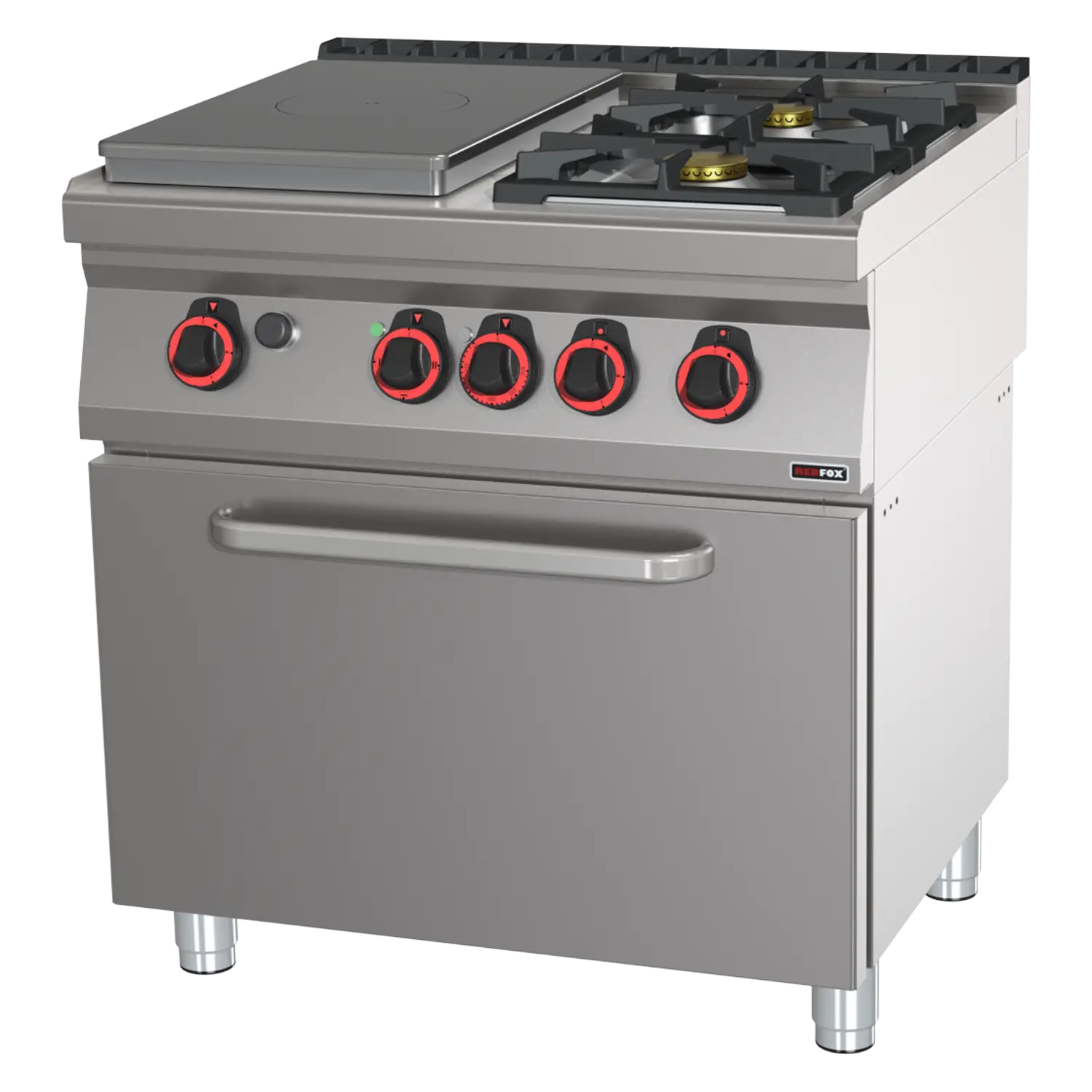

Cooking range solid top gas with static electric oven GN 2/1 - 3x burner | REDFOX - STPT 70/80 21 GE
Product no - 00018742 / Model: STPT 70/80 21 GE
Available at the central warehouse
- Device type: Combined unit
- Ignition: Piezo+večný plamen
- Protection of controls: IPX4
- Material: Stainless steel
Catalog price without VAT
4,750.00 EUR
Technical details
| SAP Code | 00018742 |
| Net Width [mm] | 800 |
| Net Depth [mm] | 700 |
| Net Height [mm] | 900 |
| Net Weight [kg] | 135.00 |
| Gross Width [mm] | 840 |
| Gross depth [mm] | 800 |
| Gross Height [mm] | 975 |
| Gross Weight [kg] | 135.00 |
| Device type | Combined unit |
| Construction type of device | With substructure |
| Power electric [kW] | 6.300 |
| Loading | 400 V / 3N - 50 Hz |
| Power gas [kW] | 25.400 |
| Ignition | Piezo+večný plamen |
| Type of gas | Natural gas, propane butane |
| Protection of controls | IPX4 |
| Material | Stainless steel |
| Indicators | operation and warm-up |
| Worktop material | AISI 304 |
| Worktop Thickness [mm] | 1.20 |
| Number of power control stages | 6 |
| Safety thermocouple | Yes |
| Safety thermostat | Yes |
| Safety thermostat up to x ° C | 360 |
| Number of burners/hot plates | 3 |
| Type of gas cooking zones | Fire protection to install + Classic burners |
| Burner type | Brass, detachable |
| Oven Type | electrical static |
| Oven size | GN 2/1 |
| Oven material | Stainless steel |
| Width of internal part [mm] | 657 |
| Depth of internal part [mm] | 558 |
| Height of internal part [mm] | 335 |
| Maximum temperature of the inner chamber [°C] | 300 |
| Minimum temperature of the inner chamber [°C] | 50 |
| Connection to a ball valve | 1/2 |
