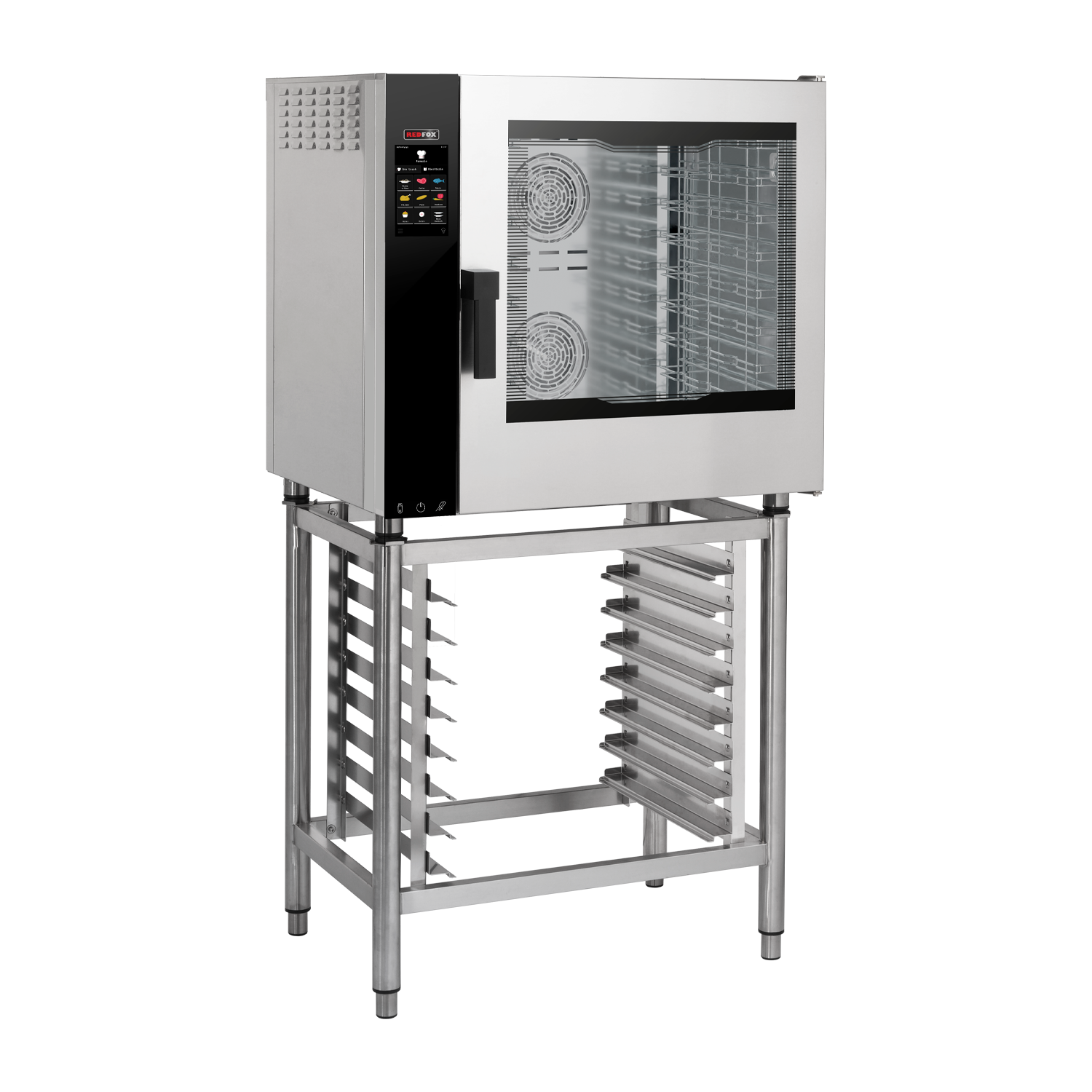

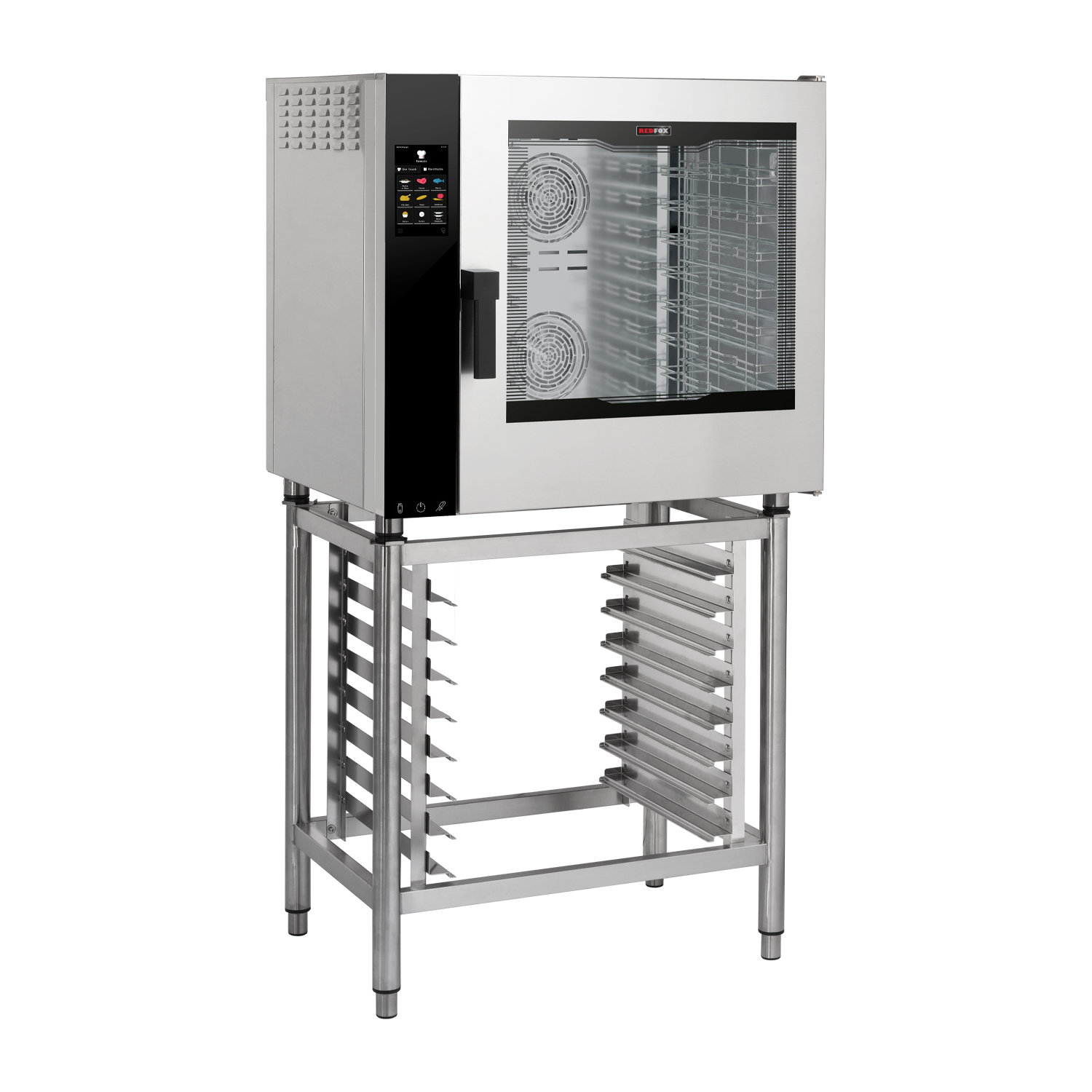

Electric convection oven reinforced version Direct steaming Color touch screen Right-hinged door 7x GN 1/1 | REDFOX - MPDN 0711 X ER
Product no - 00038592 / Model: MPDN 0711 X ER
On request
- Steam type: Injection
- Number of GN / EN: 7
- GN / EN size in device: GN 1/1, EN 600x400
- GN device depth: 65
- Control type: Touchscreen
- Display size: 7"
- Humidity control: Yes, indirect measuring
- Delta T heat preparation: Yes
- Multi level cooking: Drawer program - control of heat treatment for each dish separately
- Door constitution: Vented safety double glass, removable for easy cleaning
Catalog price without VAT
9,665.00 EUR
Technical details
| SAP Code | 00038592 |
| Net Width [mm] | 907 |
| Net Depth [mm] | 752 |
| Net Height [mm] | 823 |
| Net Weight [kg] | 105.00 |
| Gross Width [mm] | 940 |
| Gross depth [mm] | 900 |
| Gross Height [mm] | 878 |
| Gross Weight [kg] | 125.00 |
| Device type | Electric unit |
| Power electric [kW] | 12.600 |
| Loading | 400 V / 3N - 50 Hz |
| Material | AISI 304 |
| Exterior color of the device | Stainless steel |
| Adjustable feet | Yes |
| Humidity control | Yes, indirect measuring |
| Stacking availability | Yes |
| Control type | Touchscreen |
| Additional information | možnost reverzního otevírání dveří – klika na pravé straně (nutné specifikovat při objednávce) |
| Steam type | Injection |
| Chimney for moisture extraction | Yes |
| Display size | 7" |
| Delta T heat preparation | Yes |
| Unified finishing of meals EasyService | Yes |
| Night cooking | Yes |
| Multi level cooking | Drawer program - control of heat treatment for each dish separately |
| Slow cooking | from 50 °C |
| Fan stop | Interruption when door is opened, not braked |
| Lighting type | LED lighting in the door, on one side |
| Cavity material and shape | AISI 304, with rounded corners for easy cleaning |
| Reversible fan | Yes |
| Sustaince box | Yes |
| Standard equipment for device | 1-bodová sonda |
| Heating element material | Incoloy |
| Probe | Ano |
| Shower | Manual (optional) |
| Distance between the layers [mm] | 74 |
| Smoke-dry function | Yes |
| Interior lighting | Yes |
| Low temperature heat treatment | Yes |
| Number of fan speeds | 3 |
| Number of programs | 1000 |
| USB port | Yes, for uploading recipes and updating firmware |
| Door constitution | Vented safety double glass, removable for easy cleaning |
| Number of preset programs | 100 |
| Number of recipe steps | 9 |
| Minimum device temperature [°C] | 50 |
| Maximum device temperature [°C] | 300 |
| Device heating type | Combination of steam and hot air |
| HACCP | Yes |
| Number of GN / EN | 7 |
| GN / EN size in device | GN 1/1, EN 600x400 |
| GN device depth | 65 |
| Cross-section of conductors CU [mm²] | 4 |
| Diameter nominal | DN 50 |
| Water supply connection | 3/4" |
