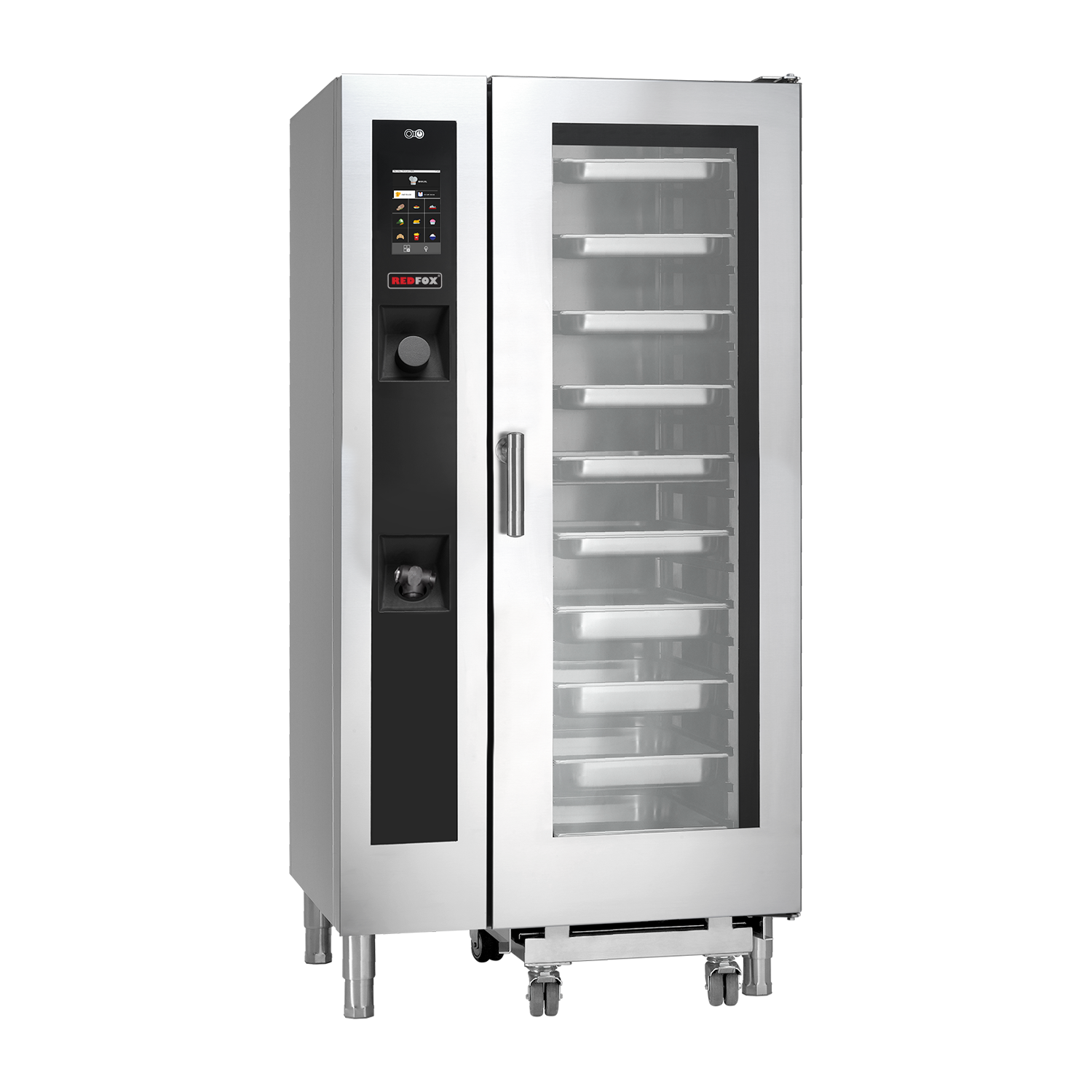

Convection oven gas 20x GN 1/1 Spray, touch color display, right door | REDFOX - MPD 2011 GRAM
- Steam type: Injection
- Number of GN / EN: 20
- GN / EN size in device: GN 1/1, EN 600x400
- Control type: Touchscreen + buttons
- Advanced moisture adjustment: Supersteam - two steam saturation modes
- Delta T heat preparation: Yes
- Automatic preheating: Yes
- Multi level cooking: Drawer program - control of heat treatment for each dish separately
- Door constitution: Vented safety double glass, removable for easy cleaning
Technical details
| SAP Code | 00020602 |
| Net Width [mm] | 995 |
| Net Depth [mm] | 835 |
| Net Height [mm] | 1850 |
| Net Weight [kg] | 270.00 |
| Gross Width [mm] | 1150 |
| Gross depth [mm] | 1050 |
| Gross Height [mm] | 2100 |
| Gross Weight [kg] | 300.00 |
| Device type | Gas unit |
| Power electric [kW] | 0.300 |
| Loading | 230 V / 1N - 50 Hz |
| Power gas [kW] | 36.000 |
| Type of gas | Natural gas, propane butane |
| Material | AISI 304 |
| Exterior color of the device | Stainless steel |
| Width of internal part [mm] | 480 |
| Depth of internal part [mm] | 660 |
| Height of internal part [mm] | 1430 |
| Adjustable feet | Yes |
| Control type | Touchscreen + buttons |
| Additional information | Gas convection oven 20x GN 1/1 injection, touch color display, right door |
| Steam type | Injection |
| Chimney for moisture extraction | Yes |
| Delayed start | Yes |
| Delta T heat preparation | Yes |
| Automatic preheating | Yes |
| Unified finishing of meals EasyService | Yes |
| Night cooking | Yes |
| Washing system | Closed - efficient use of water and washing chemicals by repeated pumping |
| Detergent type | Liquid washing detergent + water rinse |
| Multi level cooking | Drawer program - control of heat treatment for each dish separately |
| Advanced moisture adjustment | Supersteam - two steam saturation modes |
| Slow cooking | from 50 °C |
| Fan stop | Immediate when the door is opened |
| Lighting type | LED |
| Cavity material and shape | AISI 304, with rounded corners for easy cleaning |
| Reversible fan | Yes |
| Sustaince box | Yes |
| Probe | yes |
| Shower | Pull-out |
| Distance between the layers [mm] | 65 |
| Interior lighting | Yes |
| Low temperature heat treatment | Yes |
| Number of fans | 1 |
| Number of fan speeds | 6 |
| USB port | Yes, for uploading recipes and updating firmware |
| Door constitution | Vented safety double glass, removable for easy cleaning |
| Number of recipe steps | 9 |
| Maximum device temperature [°C] | 300 |
| Device heating type | Combination of steam and hot air |
| Number of GN / EN | 20 |
| GN / EN size in device | GN 1/1, EN 600x400 |
| Food regeneration | Yes |
| Maximal height of GN [mm] | 65 |
| Connection to a ball valve | 1/2 |
| Diameter nominal | DN 50 |
| Water supply connection | 3/4" |
Photos/Videos
Documents to download
Technical support
Main contact:
Telephone: +420 777 857 725
Service contracts in Prague and the Central Bohemia region:
Telephone: +420 281 869 242
E-mail: servis@rmgastro.cz
Service contracts in the regions of South and East Bohemia, Vysočina, South Moravia and the Olomouc region:
Telephone: +420 281 869 243
E-mail: servis2@rmgastro.cz
Spare parts:
Telephone: +420 222 745 853
Cell phone: +420 608 066 811
E-mail: dily@rmgastro.cz
Technical support:
Cell phone: +420 606 791 156
Working hours:
Mo-Fri: 8:00-17:00
FAQ
-
K čemu slouží MeteoSystém?MeteoSystem je patent, který kontroluje vlhkost uvnitř varného prostoru. Měří rozdíl vlhkosti uvnitř prostoru a stanoveným parametrem, čímž reguluje přívod a odvod vlhkosti prostřednictvím odvodní ventilace. Dokonalá kontrola vlhkosti nezáleží na množství pokrmů v konvektomatu – výsledek bude vždy stejný a manipulace pro nastavení minimální.
-
Mohu připravovat několik pokrmů najednou?Ano, program zásuvů umožnuje ve stejnou chvíli připravovat různé recepty, zařízení si samo řídí rozdílné časy přípravy a upozorní zvukovým signálem na každý dokončený pokrm.
-
Co je funkce EasyService?Jedná se o systém sjednoceného dokončení pokrmů v rámci programu zásuvů. Funkci oceníte při vaření pokrmů s různou dobou přípravy. Obsloužíte hosty ve stejném čase, nikoho nenecháte čekat a ani mu nepřinesete vychladlý pokrm.
