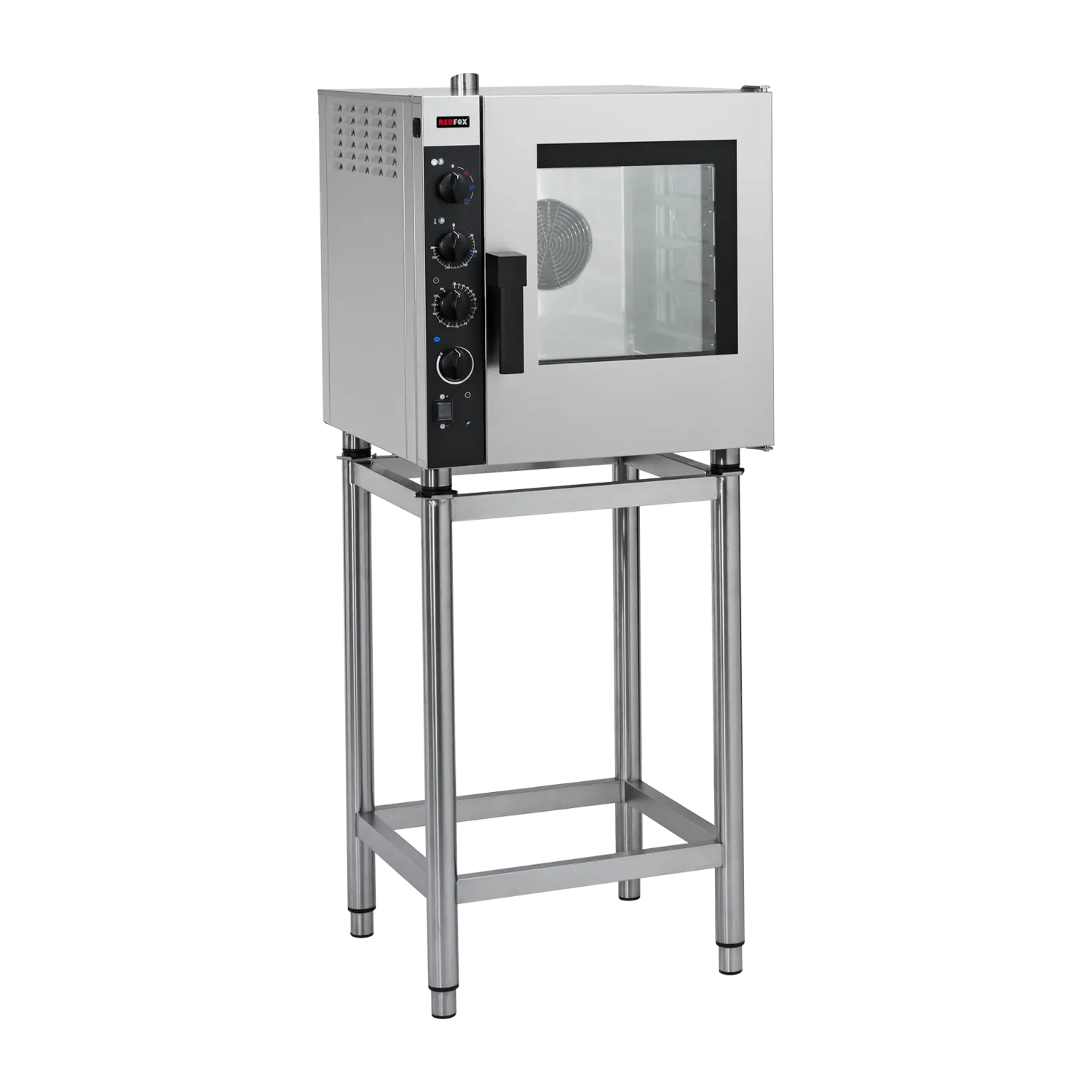

Convection oven electric Injection system manual 5x GN 2/3 | REDFOX - EPMN 0523 E
Product no - 00038557 / Model: EPMN 0523 E
On request
- Steam type: Injection
- Number of GN / EN: 5
- GN / EN size in device: GN 2/3
- GN device depth: 65
- Control type: Mechanical
- Humidity control: No
- Advanced moisture adjustment: No
- Delta T heat preparation: Yes
- Multi level cooking: No
- Door constitution: Vented safety double glass, removable for easy cleaning
Key properties
Catalog price without VAT
5,990.00 EUR
Technical details
| SAP Code | 00038557 |
| Net Width [mm] | 635 |
| Net Depth [mm] | 689 |
| Net Height [mm] | 643 |
| Net Weight [kg] | 52.00 |
| Gross Width [mm] | 810 |
| Gross depth [mm] | 700 |
| Gross Height [mm] | 780 |
| Gross Weight [kg] | 60.00 |
| Device type | Electric unit |
| Power electric [kW] | 3.300 |
| Loading | 230 V / 1N - 50 Hz |
| Material | AISI 304 |
| Exterior color of the device | Stainless steel |
| Adjustable feet | Yes |
| Humidity control | No |
| Stacking availability | Yes |
| Control type | Mechanical |
| Steam type | Injection |
| Sturdier version | No |
| Chimney for moisture extraction | Yes |
| Delayed start | Yes |
| Delta T heat preparation | Yes |
| Cold smoke-dry function | No |
| Unified finishing of meals EasyService | No |
| Night cooking | No |
| Multi level cooking | No |
| Advanced moisture adjustment | No |
| Slow cooking | Ne |
| Fan stop | Interruption when door is opened, not braked |
| Lighting type | LED lighting in the door, on one side |
| Cavity material and shape | AISI 304, with rounded corners for easy cleaning |
| Reversible fan | Yes |
| Sustaince box | Yes |
| Heating element material | Incoloy |
| Probe | Ne |
| Remote control | No |
| Shower | No |
| Distance between the layers [mm] | 74 |
| Smoke-dry function | No |
| Interior lighting | Yes |
| Low temperature heat treatment | No |
| Number of fans | 1 |
| Number of fan speeds | 2 |
| USB port | No |
| Door constitution | Vented safety double glass, removable for easy cleaning |
| Minimum device temperature [°C] | 50 |
| Maximum device temperature [°C] | 300 |
| Device heating type | Combination of steam and hot air |
| HACCP | Yes |
| Number of GN / EN | 5 |
| GN / EN size in device | GN 2/3 |
| GN device depth | 65 |
| Food regeneration | Yes |
| Cross-section of conductors CU [mm²] | 0,75 |
| Diameter nominal | DN 50 |
| Water supply connection | 3/4" |
